Leading Stainless Steel Wire Mesh Manufacturer for Bulk Supply
Chengshi Wire Mesh is a professional wire mesh manufacturer in China. We manufacture and export
high-quality woven wire mesh to customers around the world.
With advanced weaving machines, experienced production teams, and strict quality control, we produce
large quantities of stainless steel wire mesh while maintaining consistent quality.
Whether you need one pallet, one container, or a regular monthly supply, we have the capacity to support
your requirements with competitive factory prices and reliable delivery.
Why Choose Chengshi Wire Mesh for Premium Quality Wire Mesh?
Large Manufacturing Capacity
Our factory operates multiple weaving production lines to handle high-volume orders efficiently.
Bulk Order Specialist
We focus on supplying distributors, stockists, importers, and industrial users who require large
quantities and stable supply.
Competitive Factory Pricing
As a direct manufacturer, we offer factory prices without trading company markups.
Consistent Quality
Every production batch is inspected to ensure accurate mesh count, wire
diameter, opening size, and roll dimensions.
Fast Delivery
Efficient production planning helps us deliver orders on time, even for large-volume requirements.
Global Export Experience
Our products are supplied across North America, Europe, the Middle East, Southeast Asia, South America,
and Africa.
How to Choose Top Quality Stainless Steel Wire Mesh?
When buying ss wire mesh, many buyers focus only on price. However, mesh quality
directly impacts filtration performance, service life, and overall operating costs.
The following factors should always be checked before purchasing stainless steel wire mesh.
1. Material Grade Matters: Choose the Right SS Wire Mesh
Stainless Steel 304 Wire Mesh
SS304 is the most commonly used stainless steel wire mesh material. It offers good corrosion resistance,
strength, and cost-effectiveness.
- Industrial Filtration
- Food Processing
- Screening Applications
- General Manufacturing
Stainless Steel 316 Wire Mesh
SS316 contains molybdenum, which provides superior resistance to chemicals, saltwater, and corrosive
environments.
- Marine Applications
- Chemical Processing
- Pharmaceutical Industry
- Water Treatment Systems
Stainless Steel 316L Wire Mesh
SS316L offers improved corrosion resistance after welding due to its lower carbon content.
- Precision Filtration
- Chemical Plants
- Pharmaceutical Production

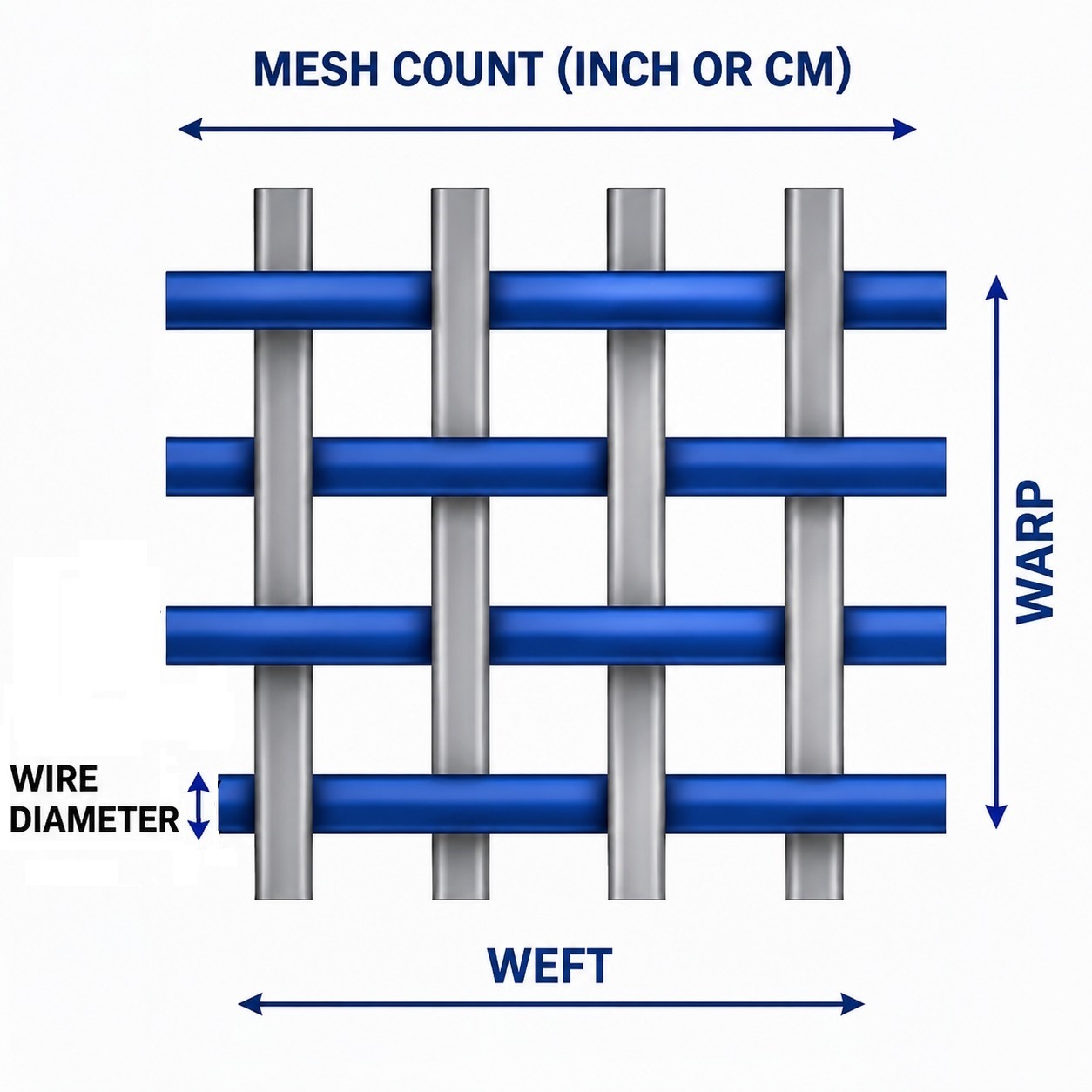

2. Mesh Count & Aperture
Mesh count refers to the number of openings per linear inch.
| Mesh Count | Opening Size |
|---|---|
| 10 Mesh | Large Opening |
| 40 Mesh | Medium Opening |
| 100 Mesh | Fine Filtration |
| 200 Mesh | Very Fine Filtration |
| 325 Mesh | Precision Filtration |
Note: Choosing the correct mesh count helps achieve the required filtration efficiency
and product performance.
3. Wire Diameter & Strength
Wire diameter affects both the strength and filtration performance of the mesh.
Thicker Wire
- Higher mechanical strength
- Longer service life
- Better wear resistance
Finer Wire
- Smaller openings
- Better filtration accuracy
- Higher precision separation
At Chengshi Wire Mesh, wire diameter is carefully controlled during production to ensure consistency
throughout every roll.
4. Weaving Types
The weaving pattern determines how the wires are interlocked. Different weaving styles create
different opening sizes, strengths, and filtration performances.
Choosing the right weave is important because it affects how the mesh performs in your application.

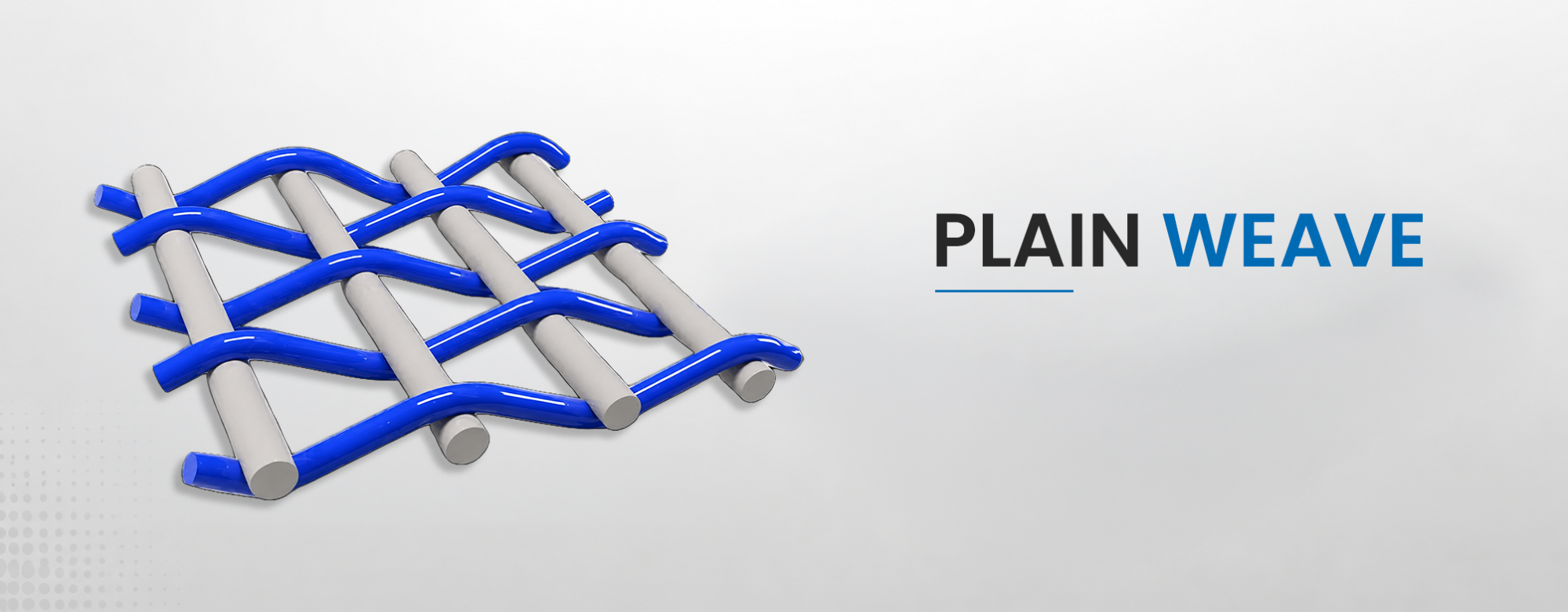

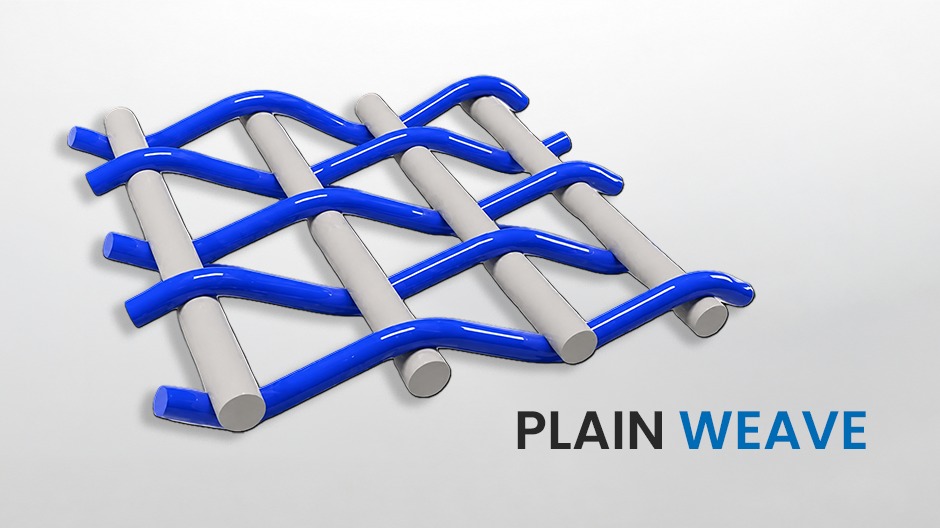

Plain Weave
The most common and widely used wire mesh pattern. In this weave, every Warp (Lengthwise) wire goes
over one Weft (Widthwise) wire and then under the next Weft (Widthwise) wire, creating a simple
crisscross pattern.
Think of it like a checkerboard pattern where all openings are evenly spaced.

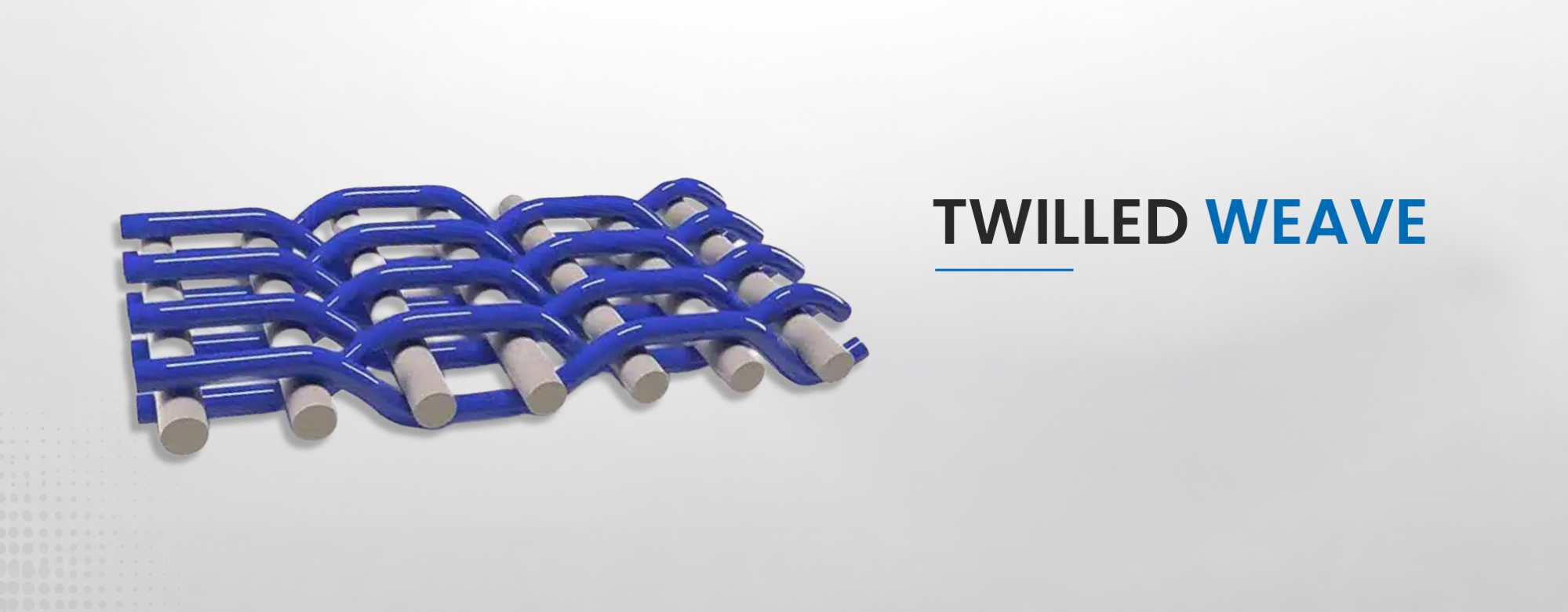

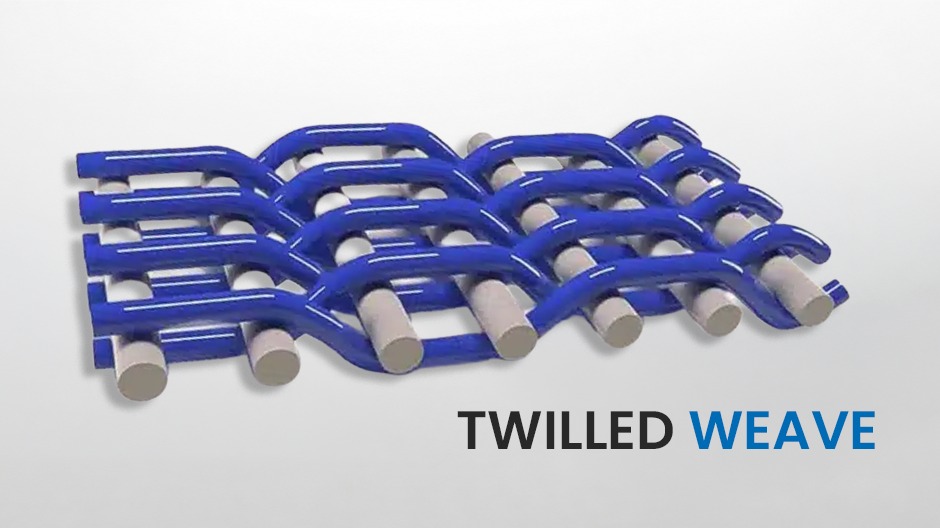

Twilled Weave
Twilled Weave is similar to Plain Weave, but the Warp (Lengthwise) wires cross over two Weft
(Widthwise) wires and then under two Weft (Widthwise) wires. This creates a diagonal pattern that
can be seen across the mesh surface.

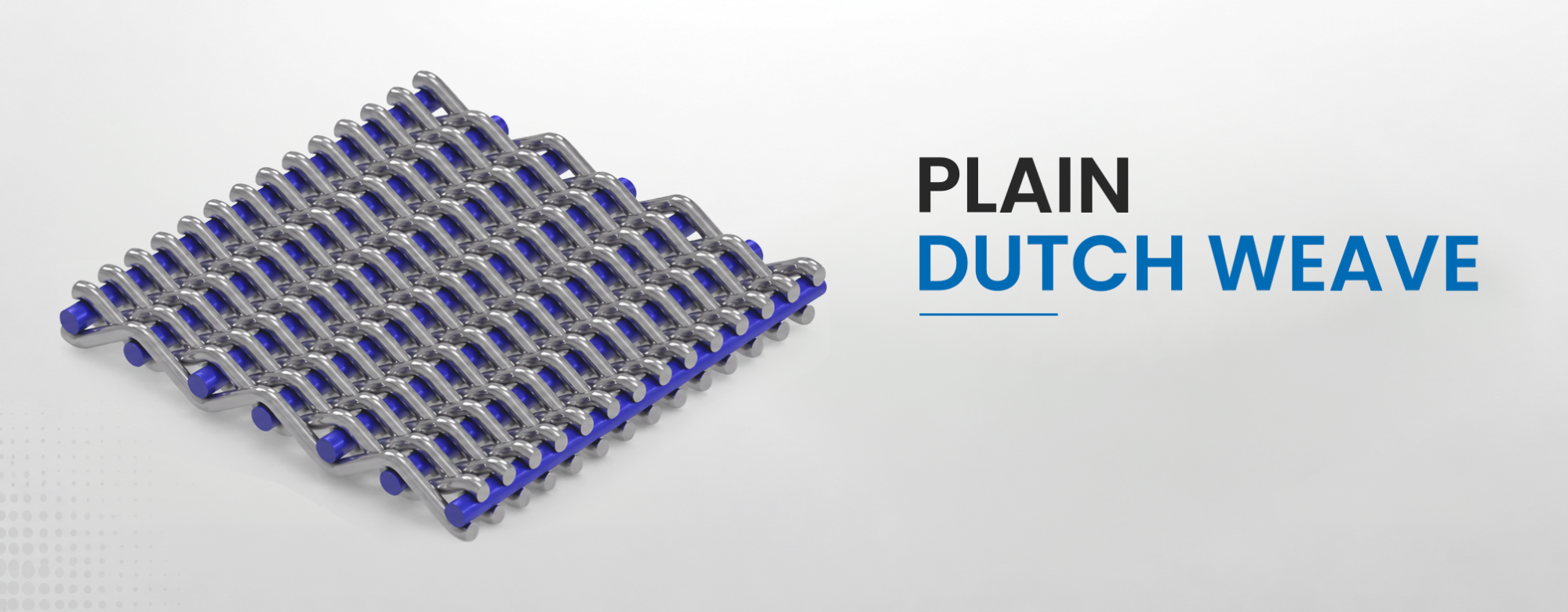

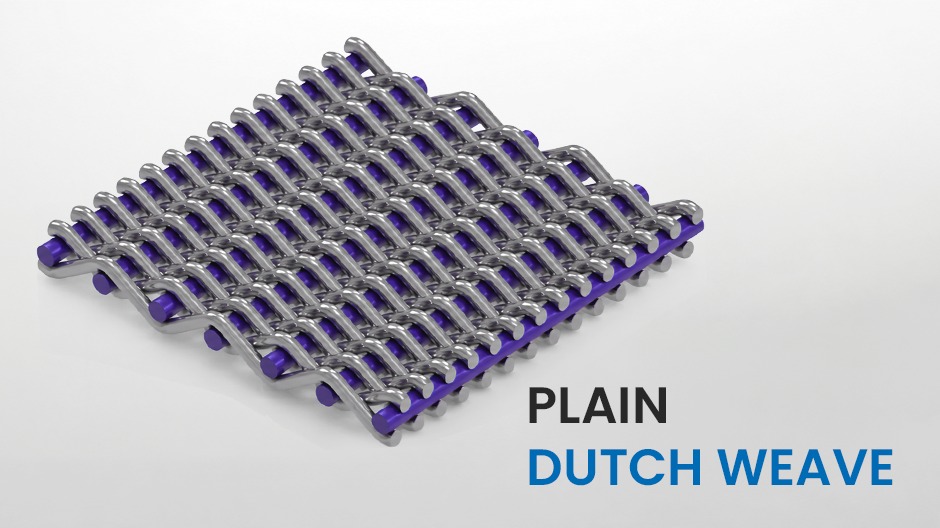

Plain Dutch Weave
Dutch Plain Weave is designed mainly for filtration.
Instead of using the same wire size in both directions, thicker wires are used in Weft (Width-wise)
and thinner wires in the Warp (Length-wise). The wires are woven very closely together, making the
openings extremely small.

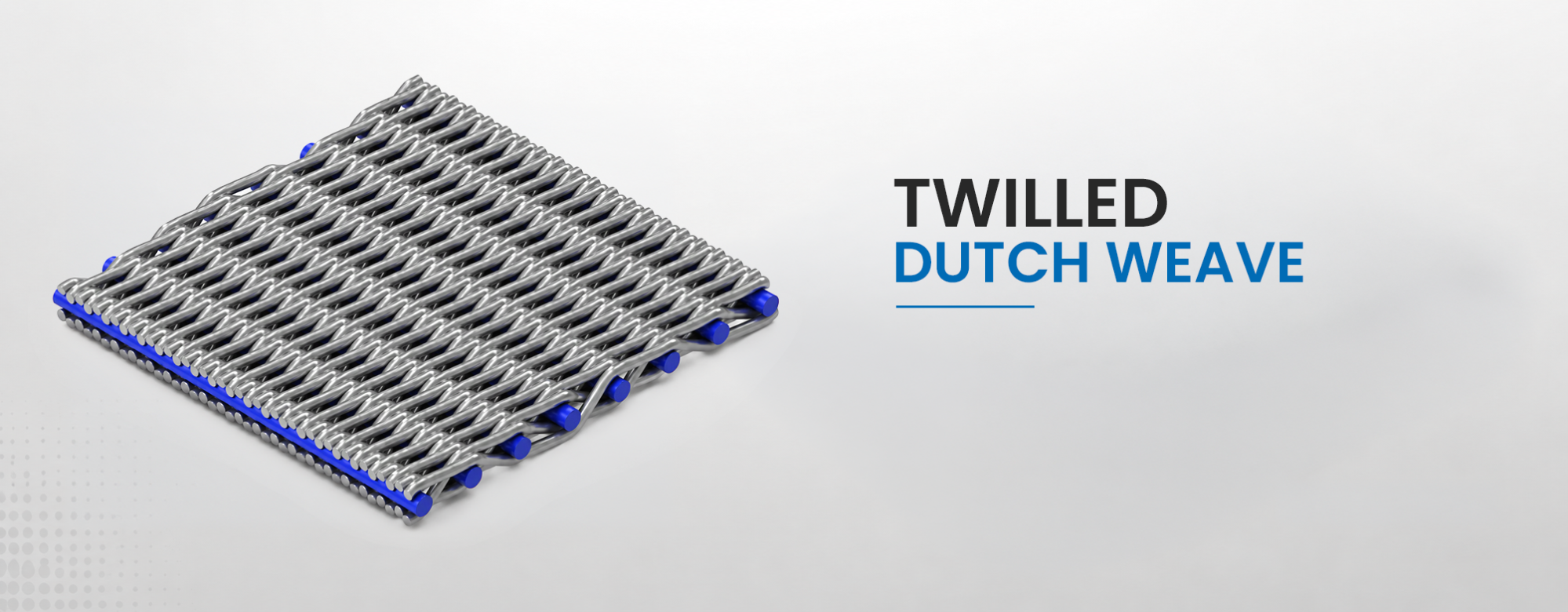

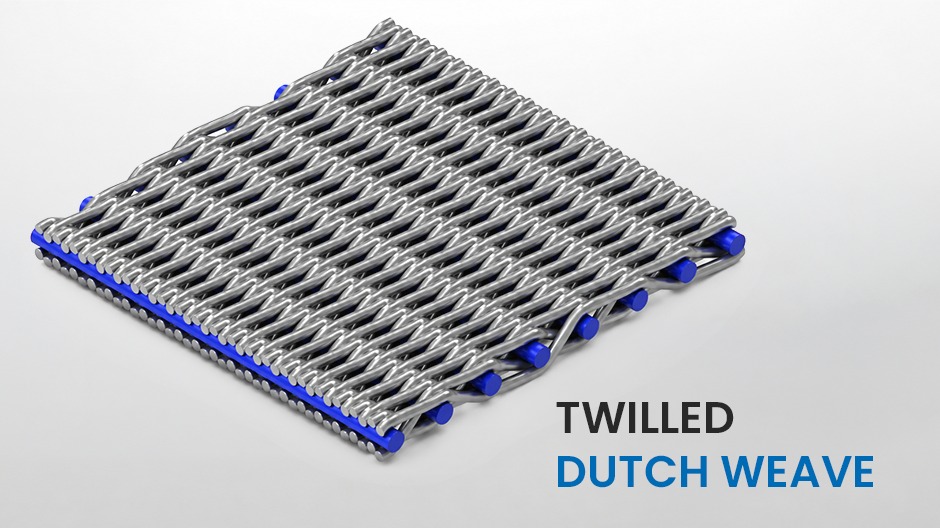

Twilled Dutch Weave
Dutch Twilled Weave combines the advantages of Dutch Weave and Twilled Weave.
Thicker wires are used in Weft (Width-wise) and thinner wires in the Warp (Lengthwise), while Warp
(Lengthwise) wires use twilled patterns where Warp cross over two Weft wires and then under two Weft
wires.
The Warp (Lengthwise) wires are woven in a diagonal pattern while remaining tightly packed together.
This creates very fine filtration openings without reducing strength.

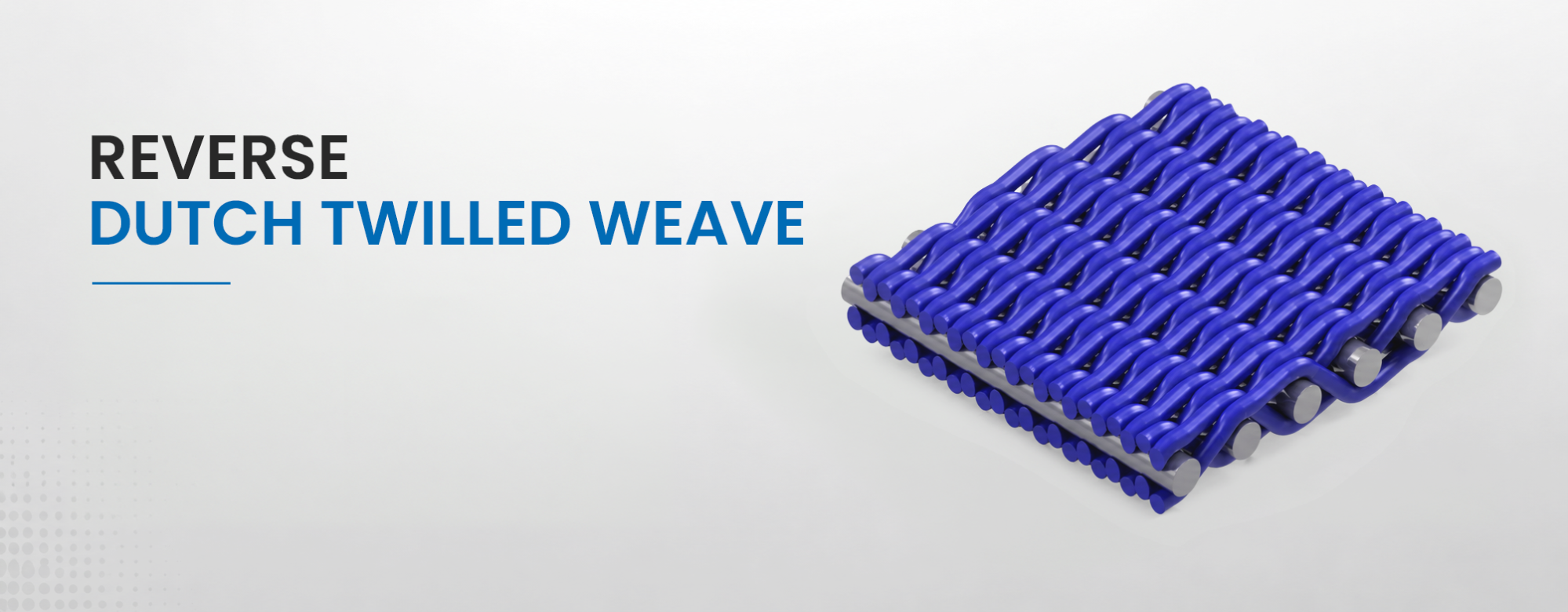

Reverse Dutch Twilled Weave
Reverse Dutch Weave is specially designed for applications that need high flow rates and fine
filtration at the same time.
The wire arrangement is opposite to a standard Dutch weave. In this weave pattern, Warp (Lengthwise)
is thicker, and Weft (Widthwise) is thinner.
This allows more material to pass through while still trapping fine particles.

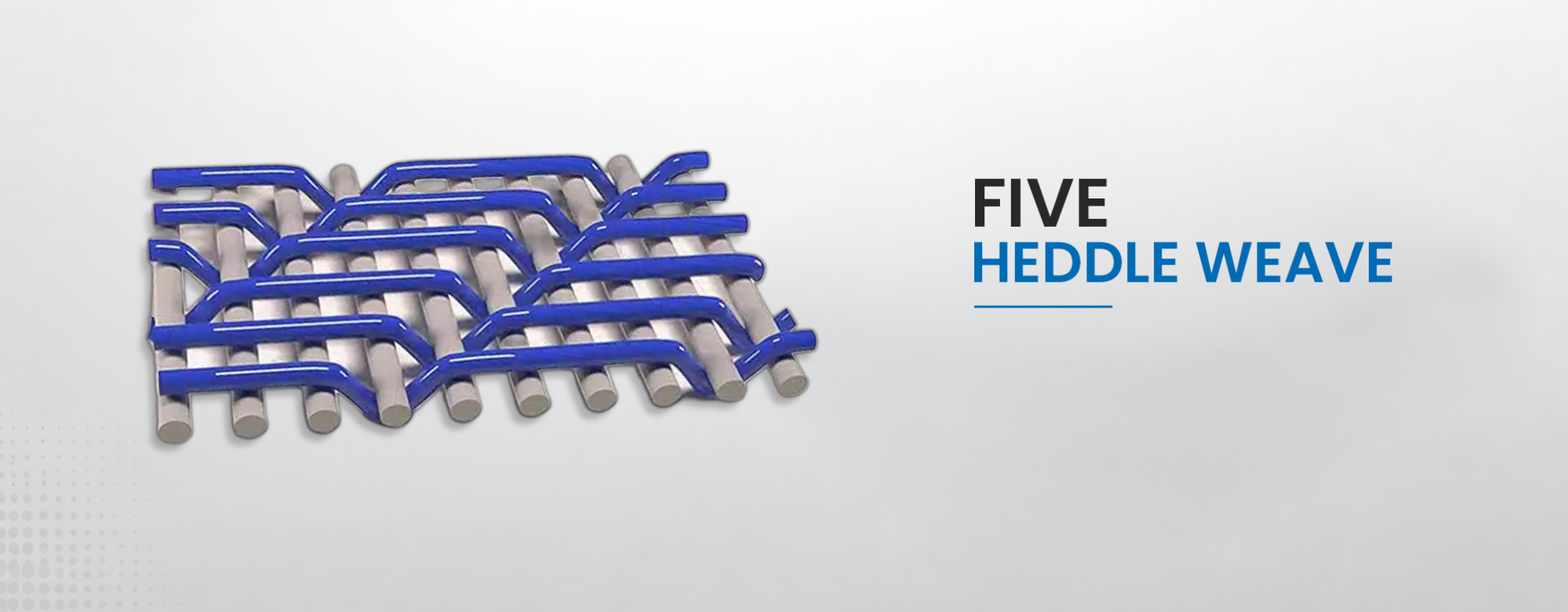

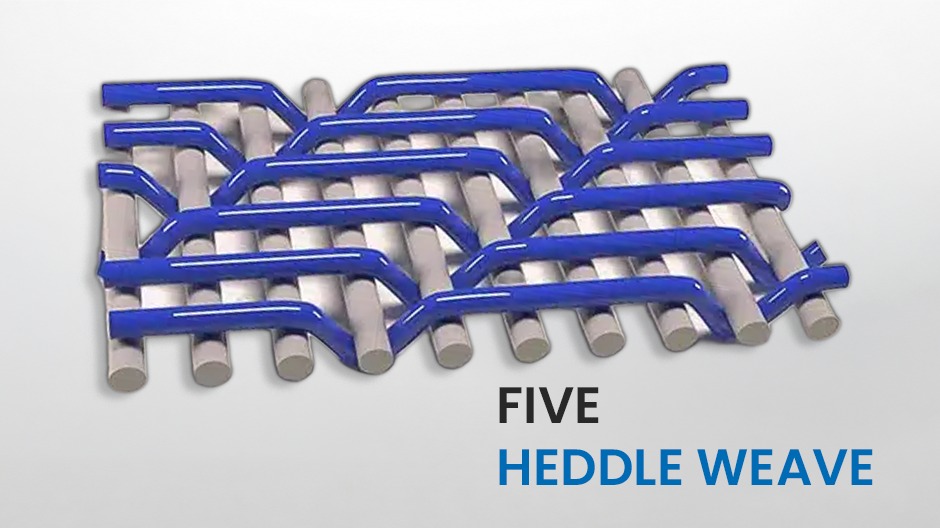

Five Heddle Weave
In Five Heddle Weave, each Warp wire (lengthwise) passes over 4 Weft wires (widthwise) before going
under the next wire.
This creates a longer weaving repeat pattern and forms larger flow channels within the mesh
structure.
Simply put, the wires are not crossing each other at every point like Plain Weave. Instead, they
travel across multiple wires before interlocking again.
5. Surface Finish
A high-quality stainless steel wire mesh should have:
- Smooth wire surface
- Uniform appearance
- Clean weaving pattern
- No broken wires
- No oil contamination
- No rust marks
- Consistent mesh openings
A clean and uniform surface helps improve filtration performance and extends product life.
At Chengshi Wire
Mesh, every roll is inspected before shipment to ensure it meets our quality
standards.
