Leading Chinese Stainless Steel Wire Mesh Manufacturer for Bulk Supply
Chengshi Wire Mesh is a professional wire mesh manufacturer in China. We manufacture and export high-quality woven wire mesh to customers around the world.
With advanced weaving machines, experienced production teams, and strict quality control, we produce large quantities of stainless steel wire mesh while maintaining consistent quality.
Whether you need one pallet, one container, or a regular monthly supply, we have the capacity to support your requirements with competitive factory prices and reliable delivery.
Why Choose Chengshi Wire Mesh for Premium Quality Wire Mesh?

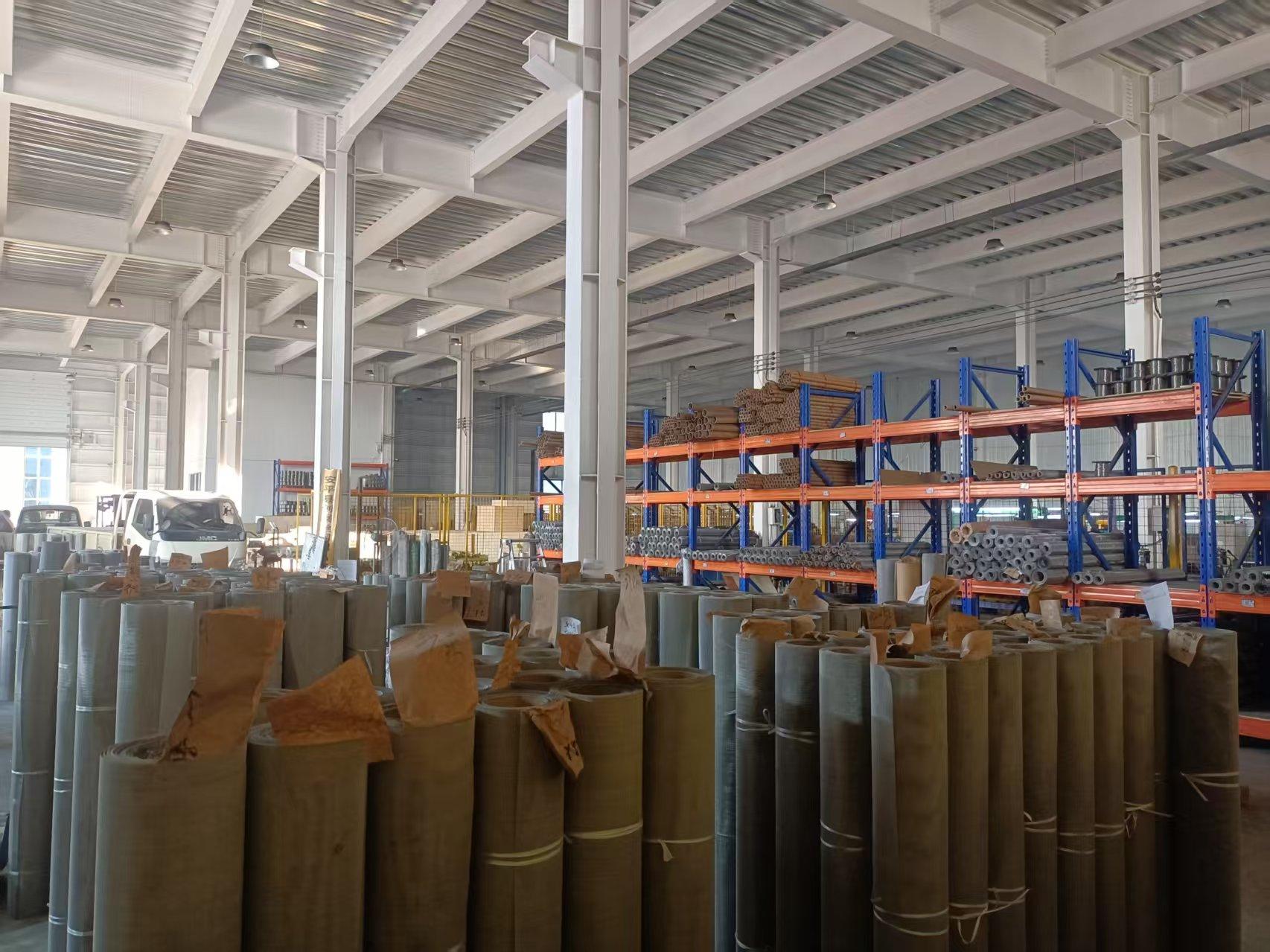

Large Manufacturing Capacity
Our factory operates multiple weaving production lines to handle high-volume orders efficiently.
Bulk Order Specialist
We focus on supplying distributors, stockists, importers, and industrial users who require large quantities and stable supply.
Competitive Factory Pricing
As a direct manufacturer, we offer factory prices without trading company markups.
Consistent Quality
Every production batch is inspected to ensure accurate mesh count, wire diameter, opening size, and roll dimensions.
Fast Delivery
Efficient production planning helps us deliver orders on time, even for large-volume requirements.
Global Export Experience
Our products are supplied across North America, Europe, the Middle East, Southeast Asia, South America, and Africa.
How to Choose Top Quality Stainless Steel Wire Mesh?
When buying stainless steel wire mesh, many buyers focus only on price. However, mesh quality directly impacts filtration performance, service life, and overall operating costs.
The following factors should always be checked before purchasing stainless steel wire mesh.

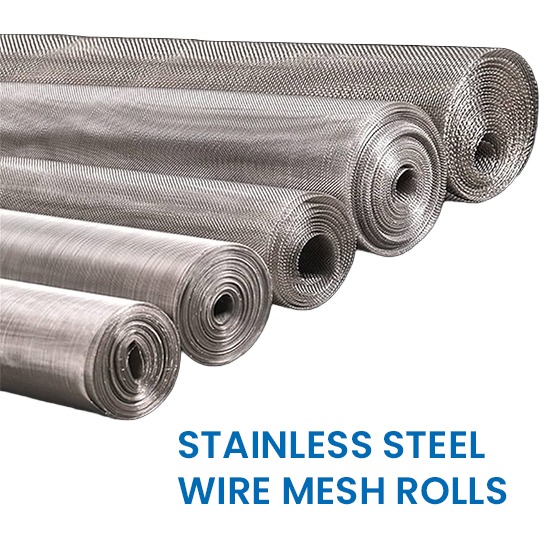

1. Material Grade Matters: Choose the Right Stainless Steel Wire Mesh
Stainless Steel 304 Wire Mesh
SS304 is the most commonly used stainless steel wire mesh material. It offers good corrosion resistance, strength, and cost-effectiveness.
- Industrial Filtration
- Food Processing
- Screening Applications
- General Manufacturing
Stainless Steel 316 Wire Mesh
SS316 contains molybdenum, which provides superior resistance to chemicals, saltwater, and corrosive environments.
- Marine Applications
- Chemical Processing
- Pharmaceutical Industry
- Water Treatment Systems
Stainless Steel 316L Wire Mesh
SS316L offers improved corrosion resistance after welding due to its lower carbon content.
- Precision Filtration
- Chemical Plants
- Pharmaceutical Production
2. Mesh Count & Aperture
Mesh count refers to the number of openings per linear inch.
| Mesh Count | Opening Size |
|---|---|
| 10 Mesh | Large Opening |
| 40 Mesh | Medium Opening |
| 100 Mesh | Fine Filtration |
| 200 Mesh | Very Fine Filtration |
| 325 Mesh | Precision Filtration |
Note: Choosing the correct mesh count helps achieve the required filtration efficiency and product performance.
3. Wire Diameter & Strength
Wire diameter affects both the strength and filtration performance of the mesh.
Thicker Wire
- Higher mechanical strength
- Longer service life
- Better wear resistance
Finer Wire
- Smaller openings
- Better filtration accuracy
- Higher precision separation
At Chengshi Wire Mesh, wire diameter is carefully controlled during production to ensure consistency throughout every roll.
4. Weaving Types
Plain Weave
The most common and widely used wire mesh pattern.
Twilled Weave
Creates a diagonal pattern and offers improved flexibility.

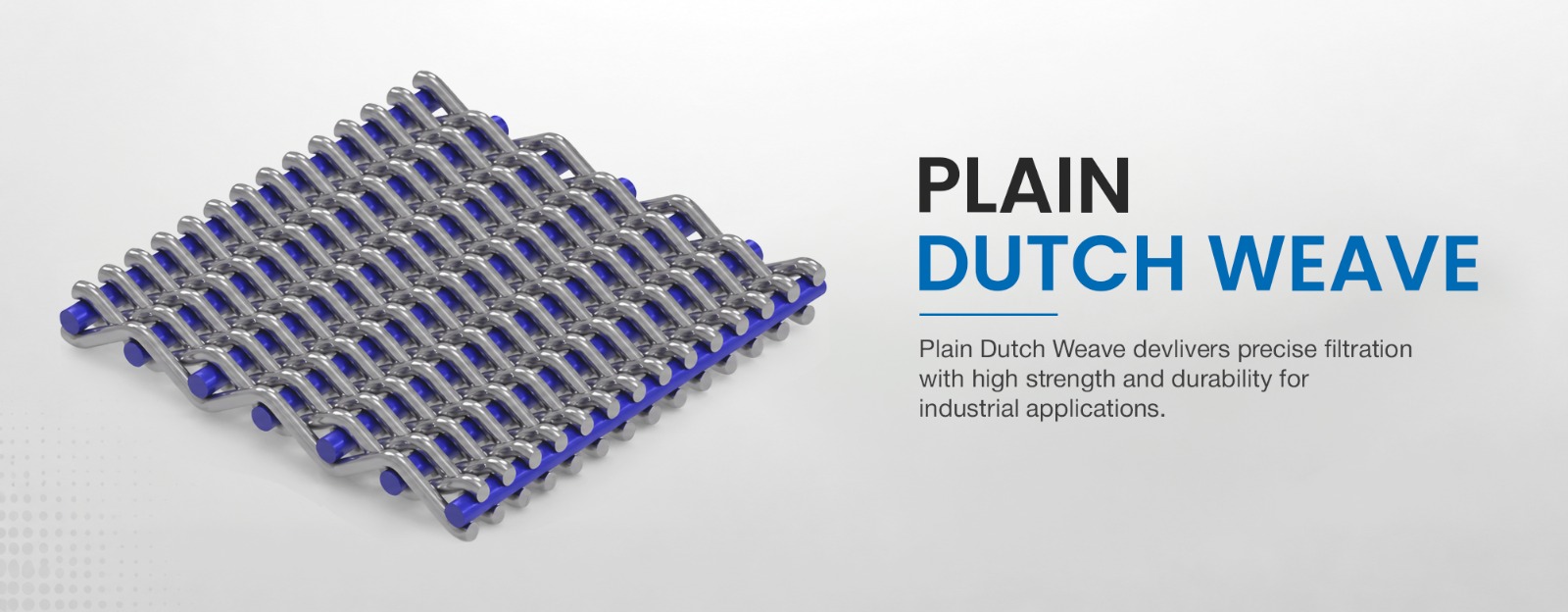

Plain Dutch Weave
Designed mainly for filtration with extremely fine openings.
Dutch Twilled Weave
Combines Dutch and Twilled weaving to achieve very fine filtration while maintaining strength.

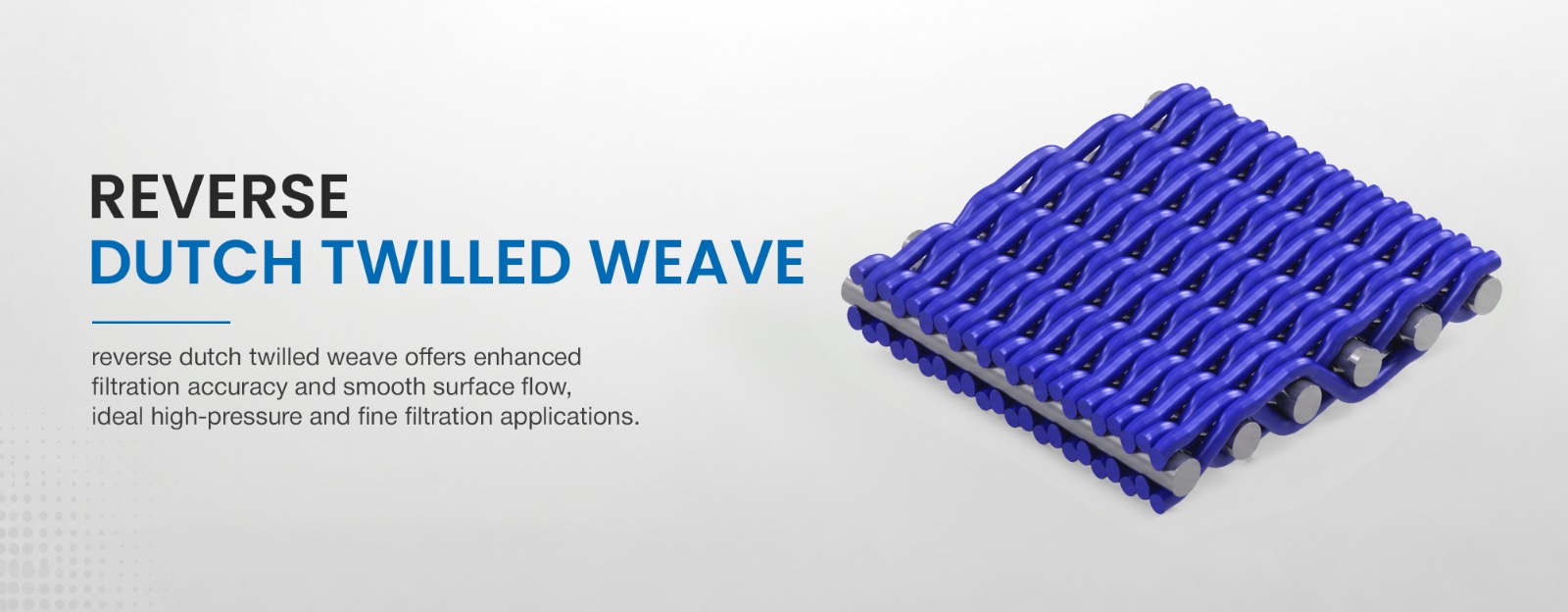

Reverse Dutch Twilled Weave
Reverse Dutch Weave is specially designed for applications that require high flow rates and fine filtration at the same time.
The wire arrangement is opposite to a standard Dutch weave. This allows more material flow while still retaining fine particles.
Five Heddle Weave
In Five Heddle Weave, each warp wire passes over four weft wires before interlocking again, creating larger flow channels and improved throughput.
5. Surface Finish
A high-quality stainless steel wire mesh should have:
- Smooth wire surface
- Uniform appearance
- Clean weaving pattern
- No broken wires
- No oil contamination
- No rust marks
- Consistent mesh openings
A clean and uniform surface helps improve filtration performance and extends product life.
At Chengshi Wire Mesh, every roll is inspected before shipment to ensure it meets our quality standards.
